BLUE STAR Cable Cutters are designed to cut insulated aluminum and copper cable of different diameters, preferably at most angles with minimum distortion of cables. Drop Forged alloy Steel jaws fitted on strong tubular handles with PVC comfort grip helps cutting of cables with minimum fatigue for longer period of time by even the unskilled operator. All cable cutters are available with replaceable jaws. Each jaw is precisely grinded on the CNC machine to perfectly match the curve of opposite jaw, there by giving swift cuts on the cable.
|

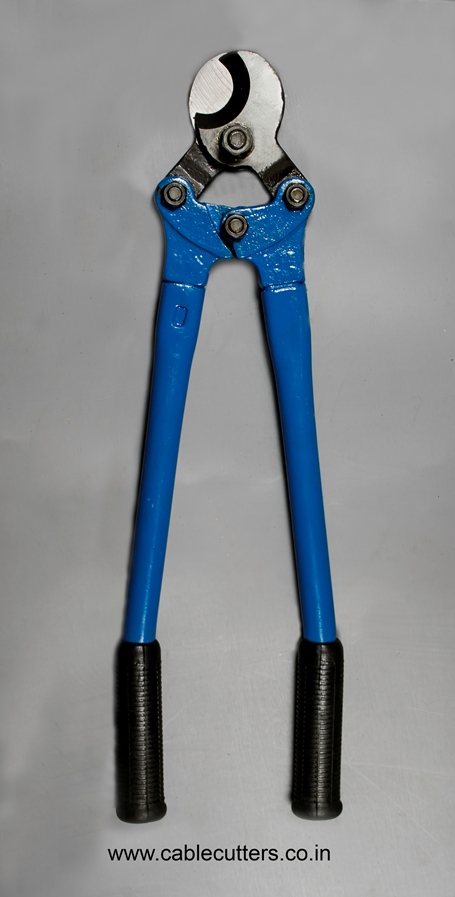

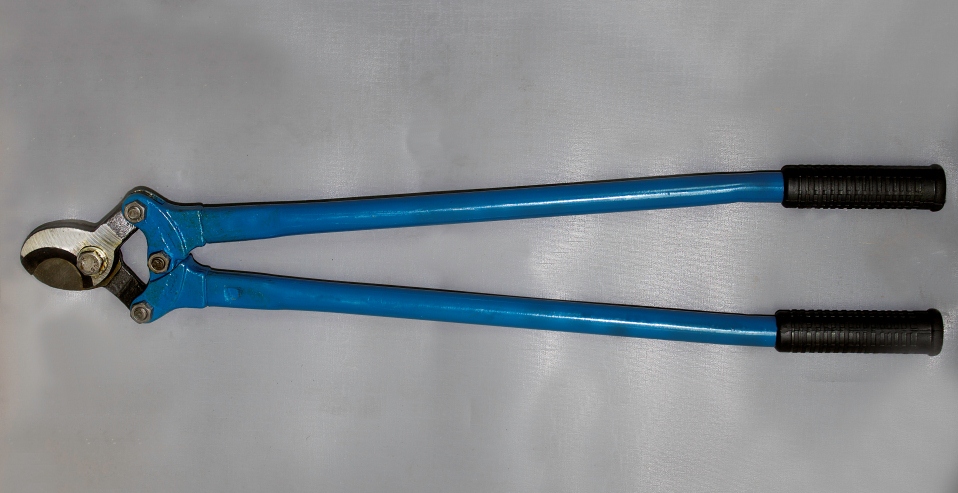

CP Type
|
|
 |
|
Cable cutter Cat. No. |
Length in inch/mm |
Maximum cutting capacity in |
Approximate. weight in grams |
Std. Packing |
Head Jaws Cat. No. |
Approximate. weight in grams |
Std. Packing |
|
| mm | inch | |||||||
| *CP14 | 14"/350MM | 9 | 11/32" | 900 | 18 | SCP14 | 150 | 30 |
| *CP27 | 27"/675MM | 15 | 19/32" | 2200 | 12 | SCP27 | 350 | 20 |

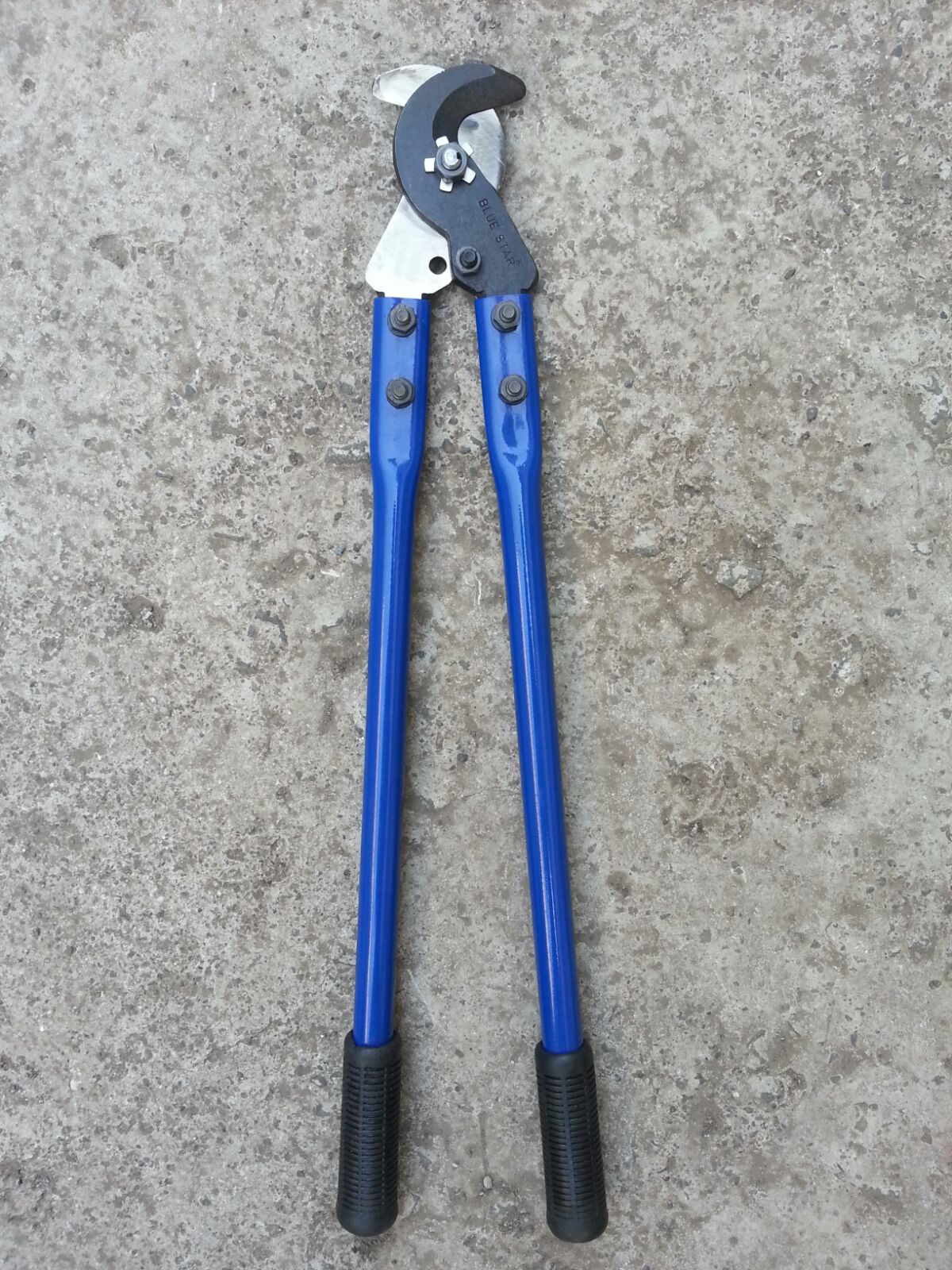

CU Type
Click To Enlarge.
|
Cable cutter Cat. No. |
Length in inch/mm |
Maximum cutting capacity in |
Approximate. weight in grams |
Std. Packing |
Head Jaws Cat. No. |
Approximate. weight in grams |
Std. Packing |
|
| mm | Sq mm | |||||||
| *CU24 | 24"/600MM | Copper 18 mm | 250 mm2 | 1700 | 18 | SCP14 | 30 | |
| Aluminum 20 mm | 350 mm2 | |||||||
CC Type (Lever type)
Click To Enlarge.
|
Cable cutter Cat. No. |
Length in inch/mm |
Maximum cutting capacity in |
Approximate. weight in grams |
Std. Packing |
Head Jaws Cat. No. |
Approximate. weight in grams |
Std. Packing |
|
| mm | Inch | |||||||
| *CC30 | 30"/750MM | 30 | 1-1/4" | 4100 | 6 | SCC30 | 1050 | 10 |
| *CC42 | 42"/1050MM | 50 | 2" | 8500 | 3 | SCC42 | 2100 | 10 |
These cable cutters are not intended to cut steel, ACSR and armored cables. For steel and ACSR cables ask for ACSR conductor cutter.

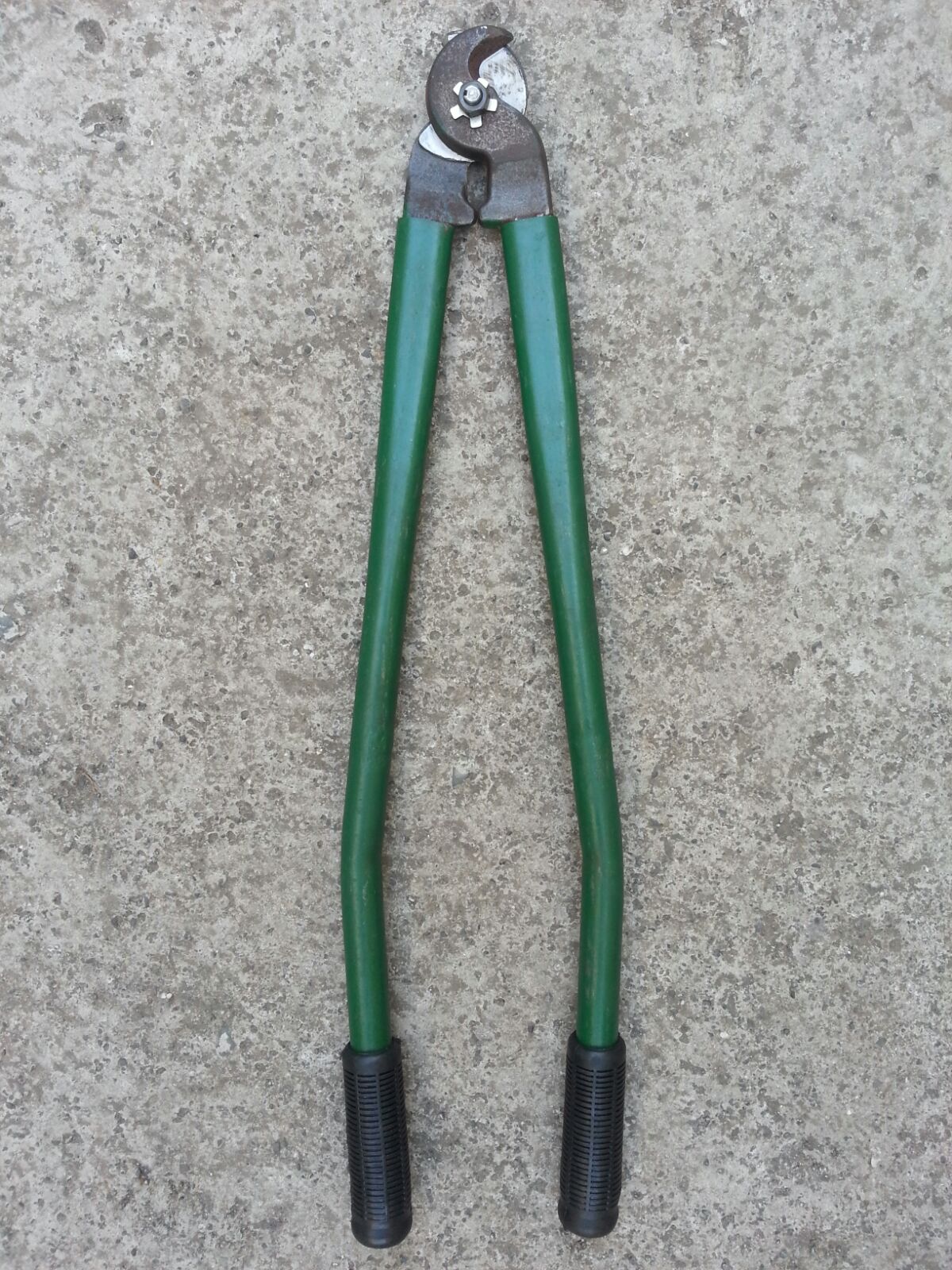

Wire rope cutter
Click To Enlarge.
|
Wire rope cutter Cat. No. |
Length in inch/mm |
Maximum cutting capacity in |
Approximate. weight in grams |
Std. Packing |
Head Jaws Cat. No. |
Approximate. weight in grams |
Std. Packing |
|
| mm | Inch | |||||||
| *WR16 | 28"/710MM | 16 | 5/8" | 2200 | 6 | WRC30 | 1050 | 10 |
Length and weight mentioned are approximate. Always wear safety gear while cutting. Due to continuous improvement, we reserve the right to change the specifications without notice.
